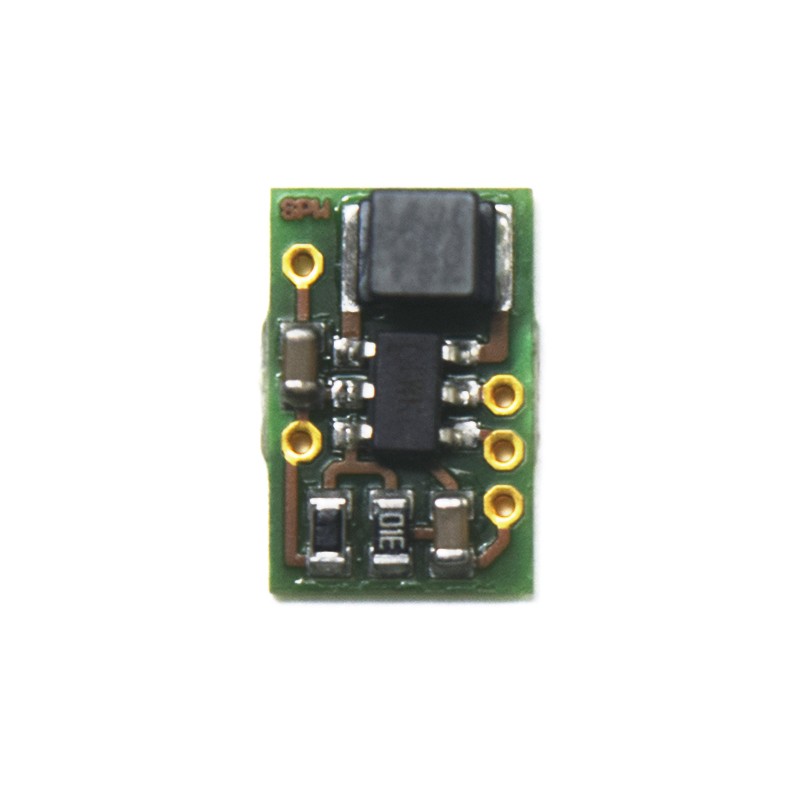

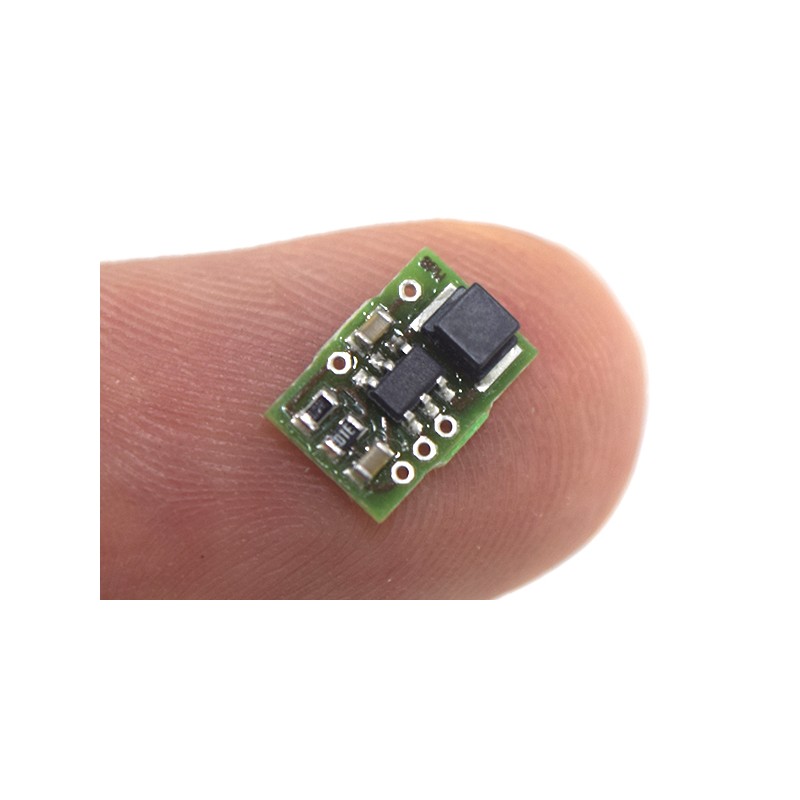

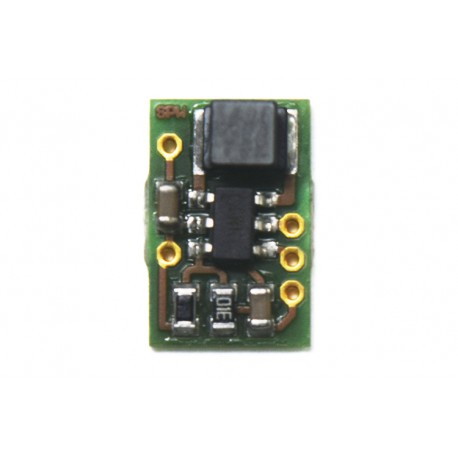

DC/DC voltage converter 4'2 V

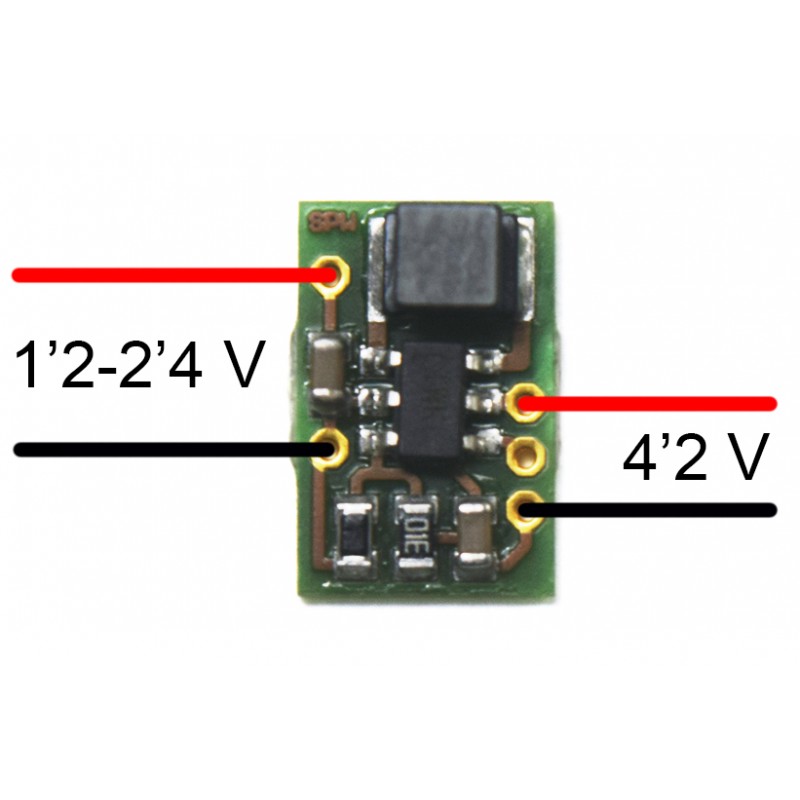

DC-DC voltage converter, for 1 or 2 cell batteries (1'2-2'4 V).

It works with an input voltage of between 1'2 and 3'5 volts.

The output voltage is 4'2 volts, with a capacity of 100 mA in the case of using one cell (1'2 V) and 200 mA in the case of using two cells (2'4 V).

This converter can be used to power Car System decoders that do not incorporate a booster internally and therefore operate at more than 2'4 volts.

It could also power other items that normally could not work with a 2 cell battery as they need more than 2'4 volts, for example light chips.
