Truck lighting module (2'4 V)

With this lighting module that operates at a voltage of 1'2 V (or 2'4 V if a diode is connected in series), the following lighting can be installed in an analog Car System vehicle:

• Front light: 2x white led (Type 0603)
• Rear light: 2x red led (Type 0603)
• 2 outputs for lateral position lights: 2 + 2 yellow led (Type 0603)
• 2 outputs for emergency flashers: 2 + 2 yellow leds (Type 0603)

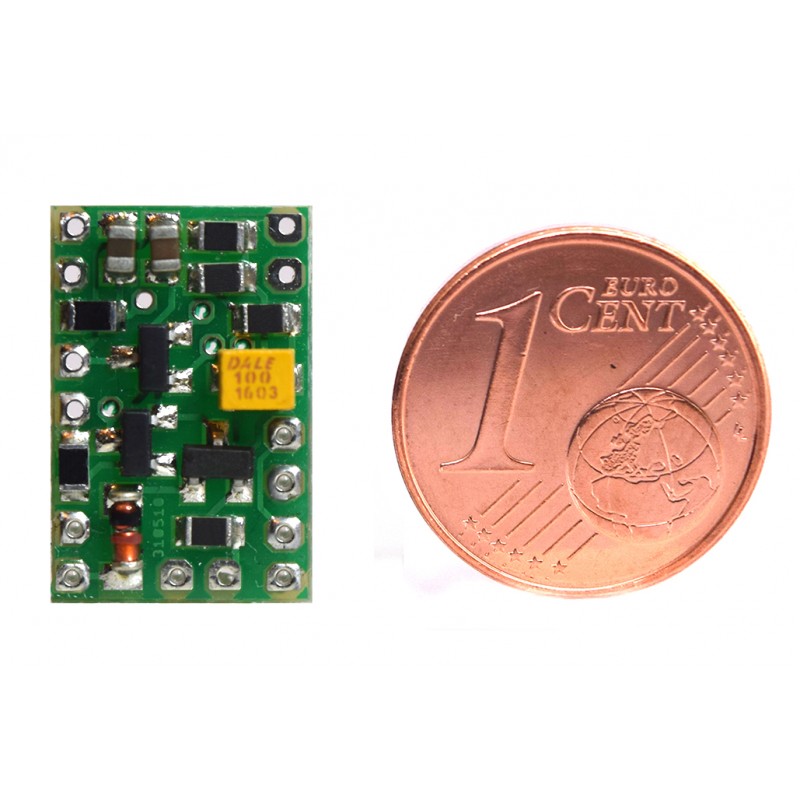

The series resistors of each LED output are already included in the PCB board

If the flashing light is too fast, an additional 30-68 ohm resistance should be installed on the negative wire.
